Bell and Howell 16mm Projector Models

This is my attempt at making a list of B&H 16mm Projector models.  There are probably many omissions, and errors.  Any corrections and additional information is appreciated.  Special thanks to Ken Layton for correcting errors and adding much information.  Amplifier code: T = Transistorized, V = Vacuum Tube (Valve), S = Silent.

Last updated Feb. 10, 2023
Comparison of Bell and Howell 16mm Projectors
Model Suffix Type Features Case Amp. Era Proj. Lamp Exc. Lamp Picture
-
 --
 Filmo
 Silent, originally a round base, later an oval base
S
 1923-1928
 ?

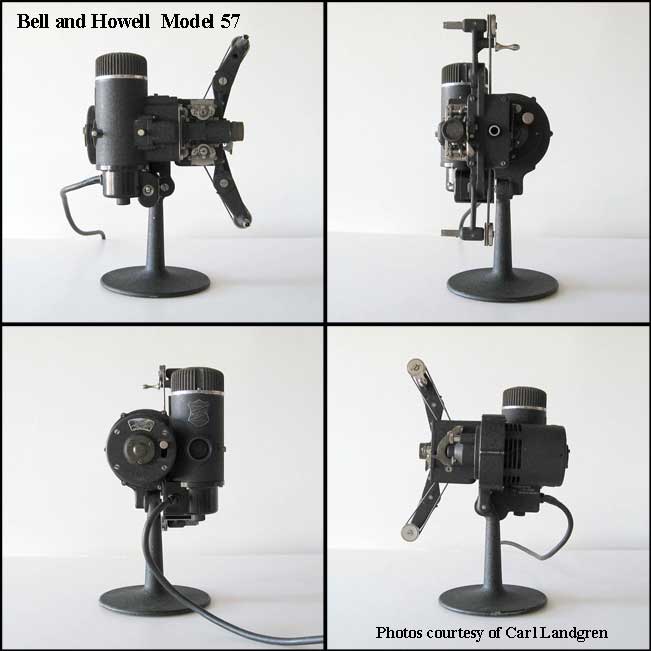

Photo of B&H model 57
--
 S

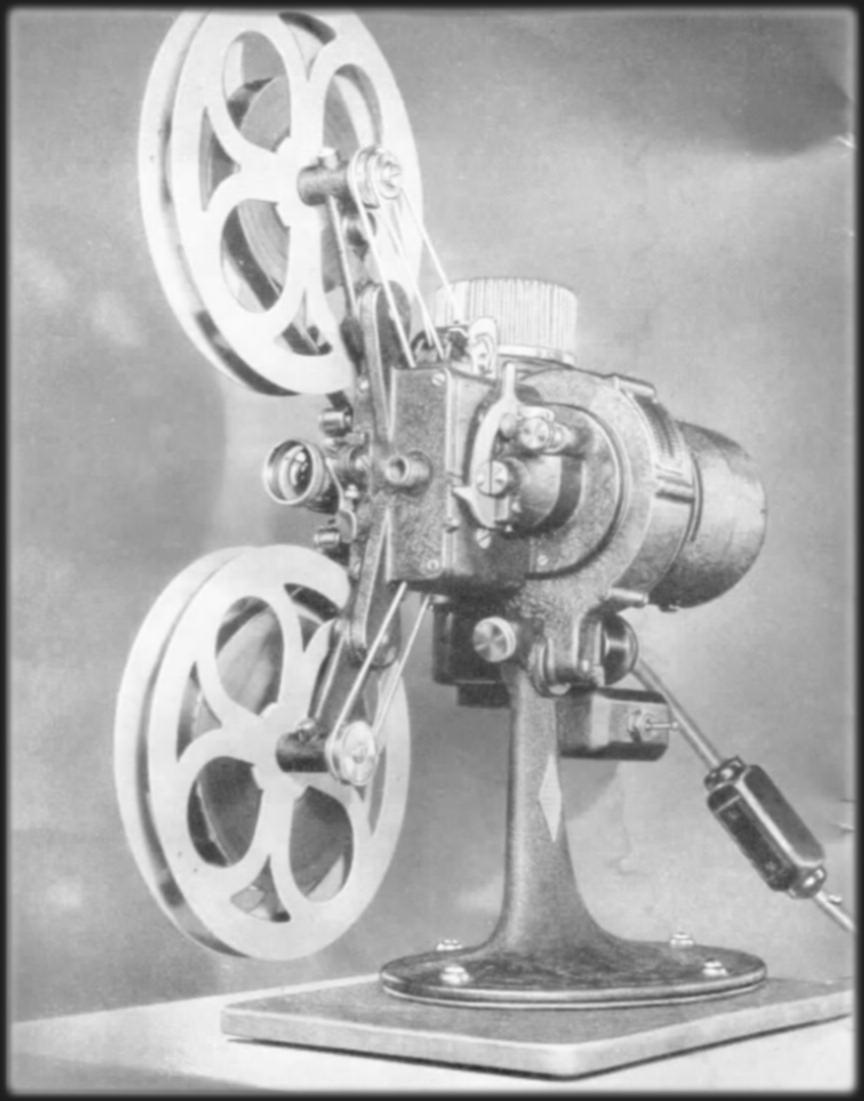

 Filmo S
 Silent, oval base Removes from wooden case. S Mid 1930s
 DAR?
Filmo S
?
Filmaster
 Silent, oval base, switch on cord
 Removes from wooden case. S Early 1930s
 DAR?
Filmaster

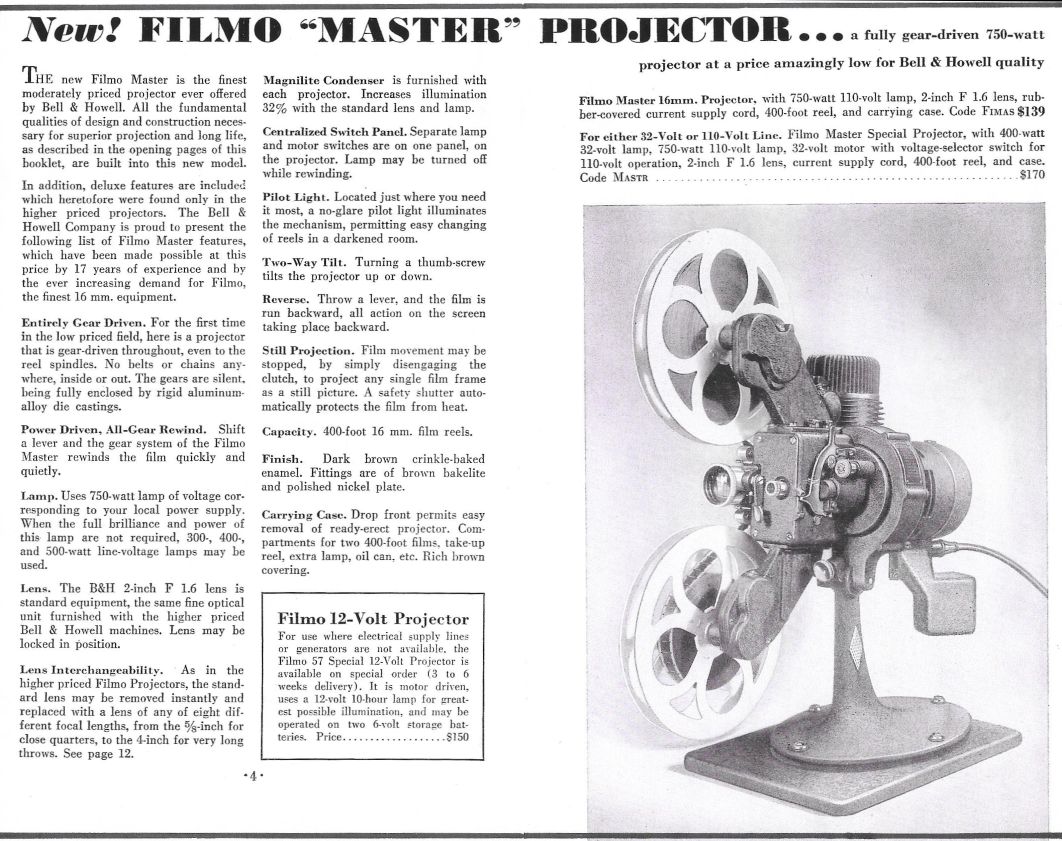

57 R-S Filmo Master Silent, oval base Removes from wooden case. S 1928-1931 DAR

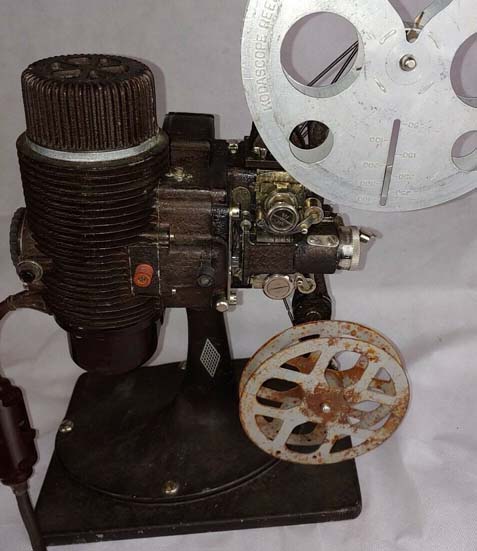

Photo of B&H 57 S-T
57
 U
 Filmo Master Silent, oval base, 2 switches on box attached to body.
 Removes from wooden case. S
 Late 1930s
 DAG, DEJ

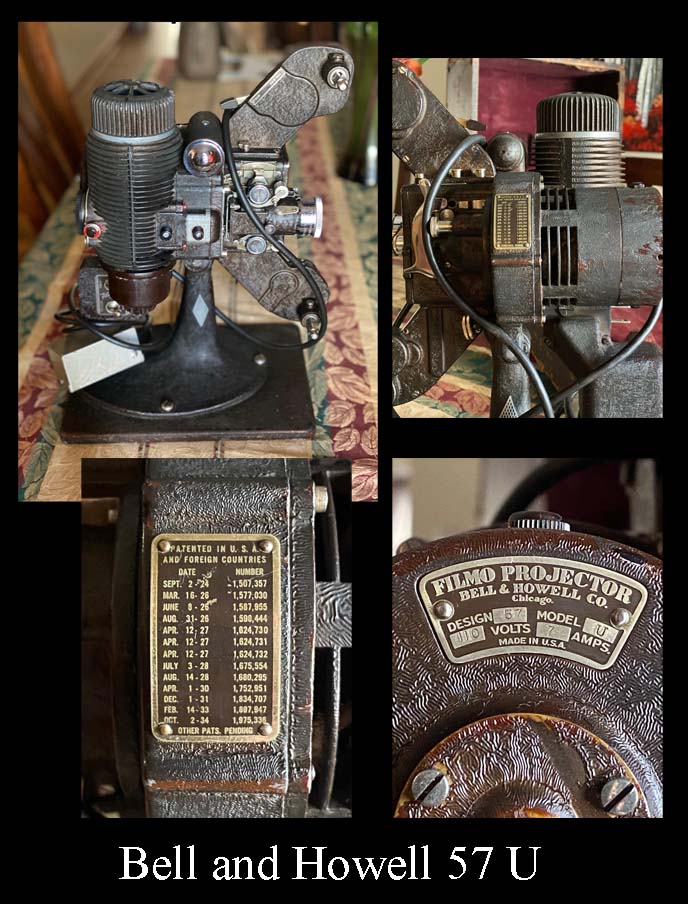

Picture of B&H 57 U
Filmo Master
--

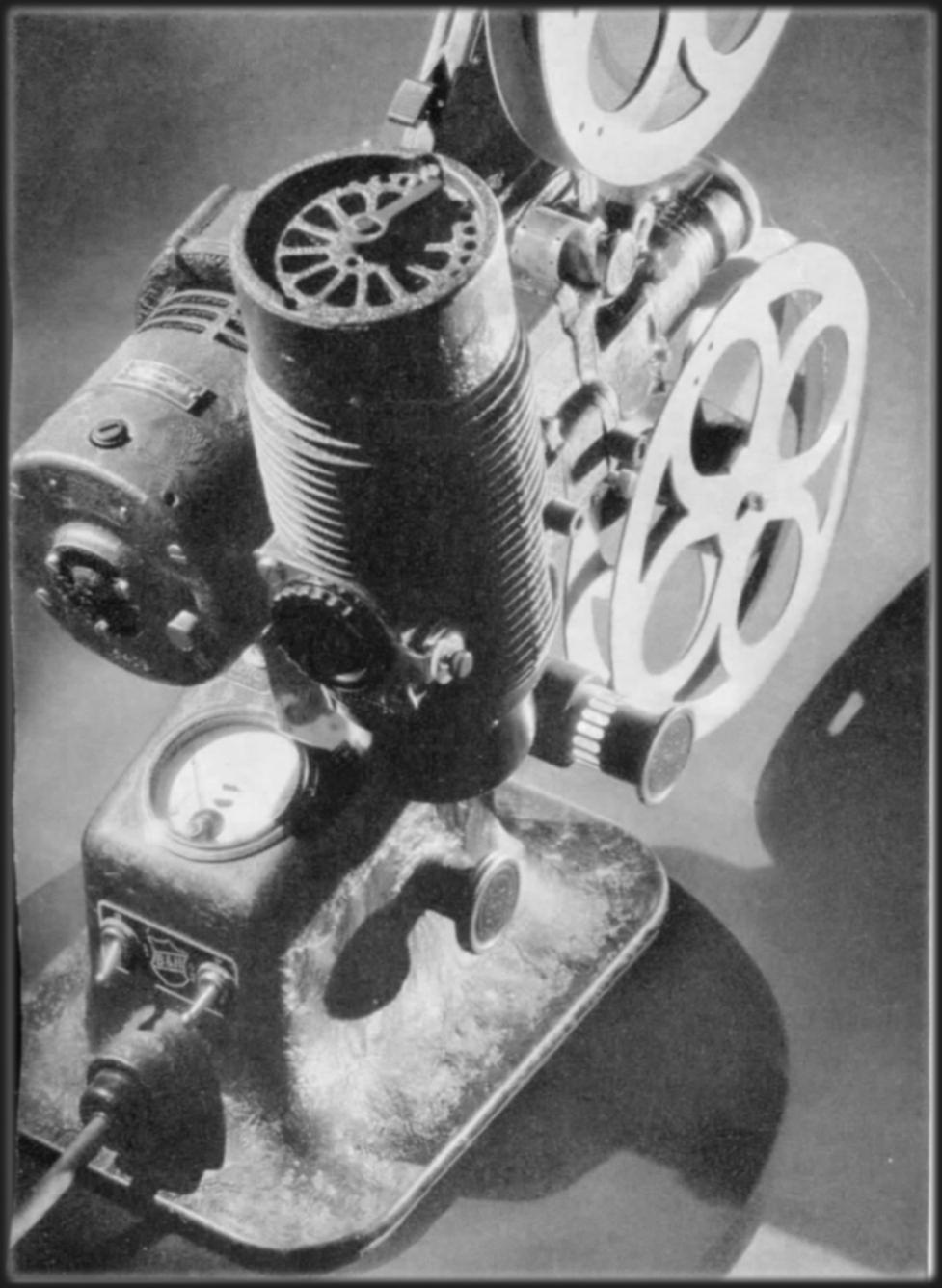

 JS
 Filmo JS
 Silent, rectangular base with switches in the base.  Rheostat above lamp, meter on base
 Removes from wooden case. S
 Mid 1930s
 DAG, DEJ?
Filmo JS
57 V-Z Filmo Diplomat
 Silent, rectangular base with switches in the base.  Similar to the 173.
 Removes from wooden case. S Late 1930s DAG, DEJ

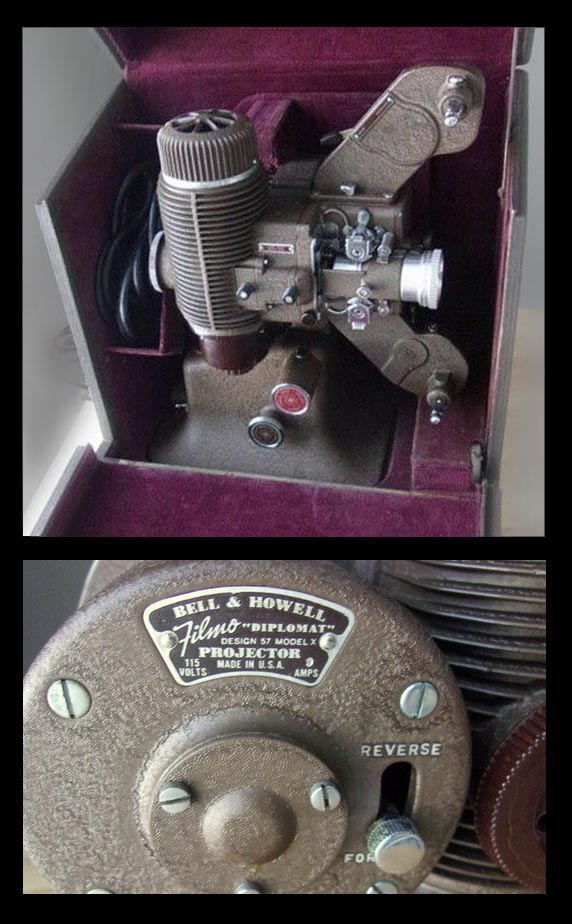

Picture of B&H 57-X
120 A Filmosound

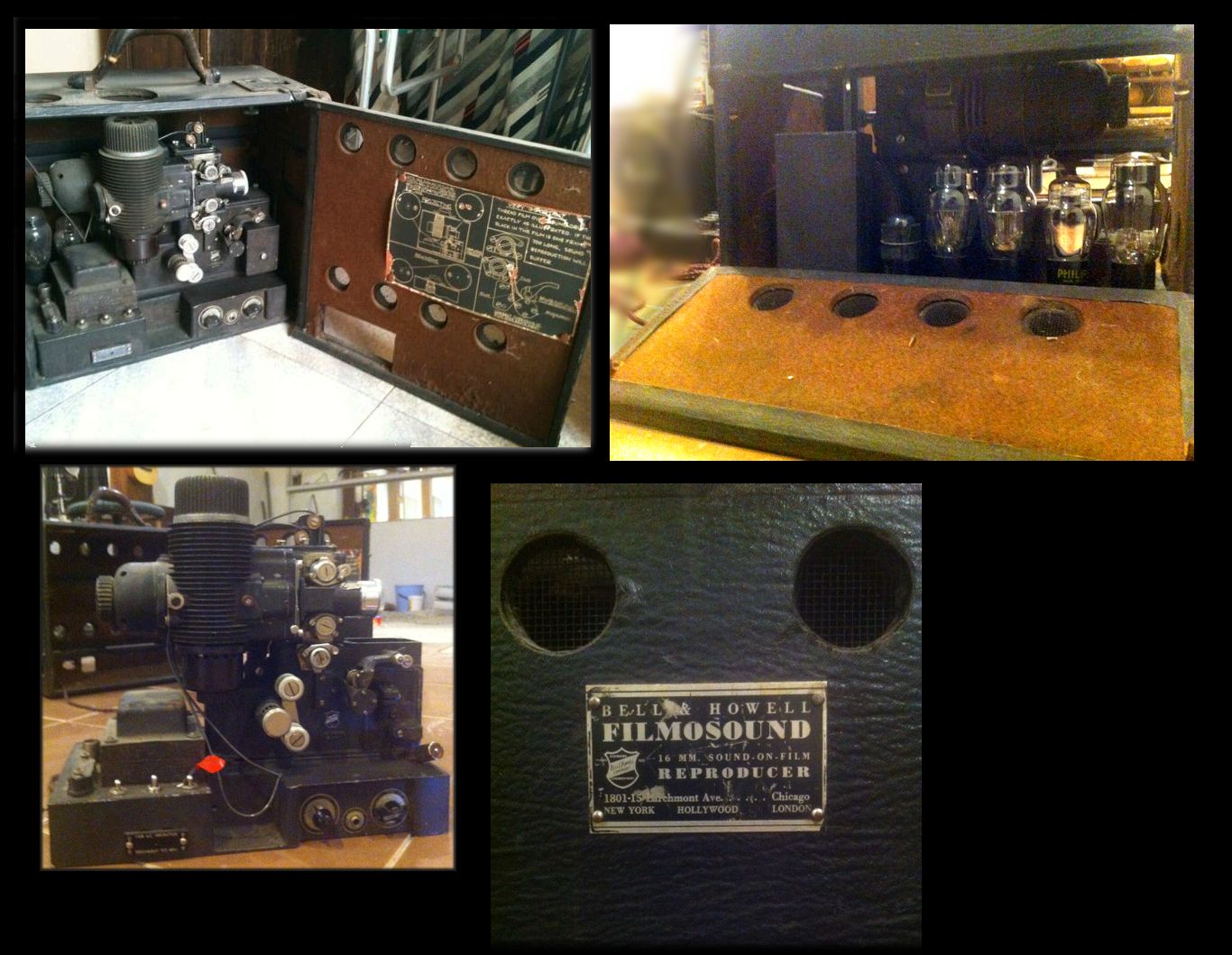

V 1934-1935 DAR BFT, BRD Photo of B&H 120
120 B-K Filmosound

V 1934-1940 DAG, DEJ BFT, BRD
129A
Filmo Showmaster Silent with 1600 ft reel capacity.   2 inch f2.0 lens.
 Proj. lifts out of wooden case. S Late 1930s DAG, DEJ

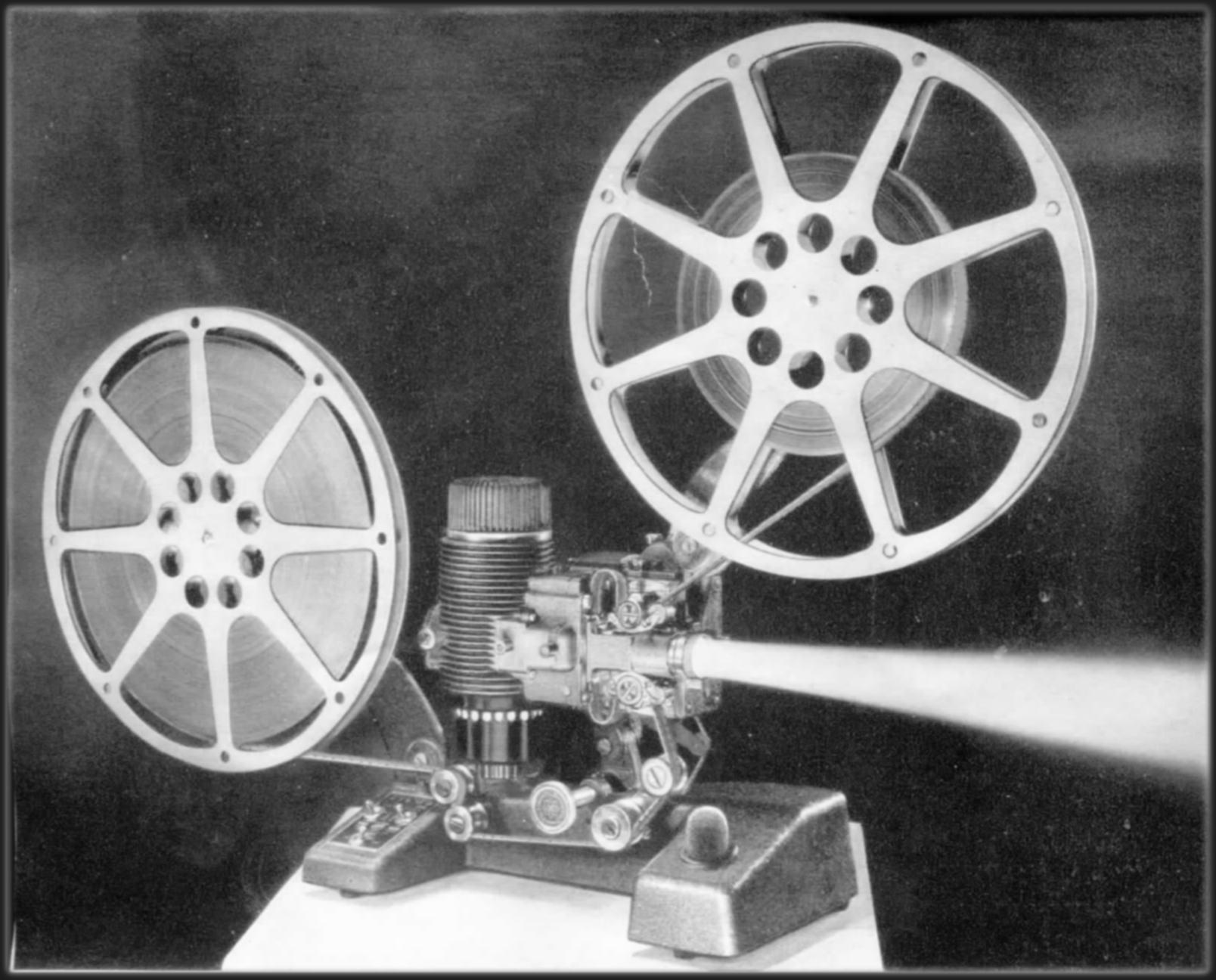

B&H 129AB
129B
Filmo Showmaster Silent with 1600 ft reel capacity.  2 inch f1.65 lens
 Proj. lifts out of wooden case. S Late 1930s DAG, DEJ

129E
Filmo Showmaster Silent with 1600 ft reel capacity.  2 inch f1.65 lens
 Proj. lifts out of wooden case. S Late 1930s DAG, DEJ

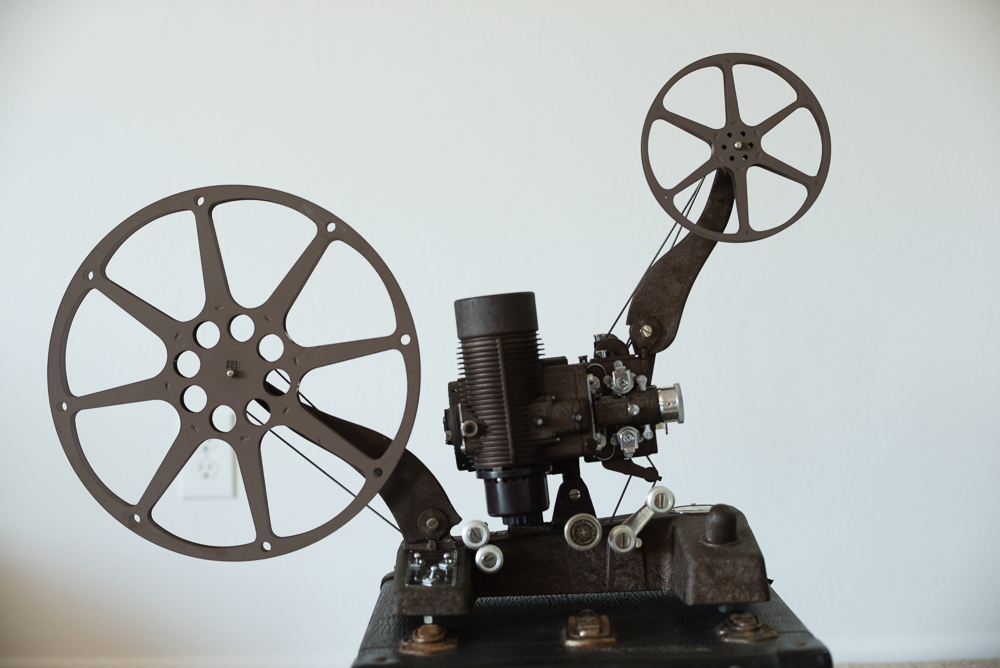

B&H 129E
130
Filmo Auditorium Silent
 Rheostat for lamp brightness.
 Projector and amplifier remove from separate wooden cases.
 S Mid 1930s
 DAG, DEJ, DHW

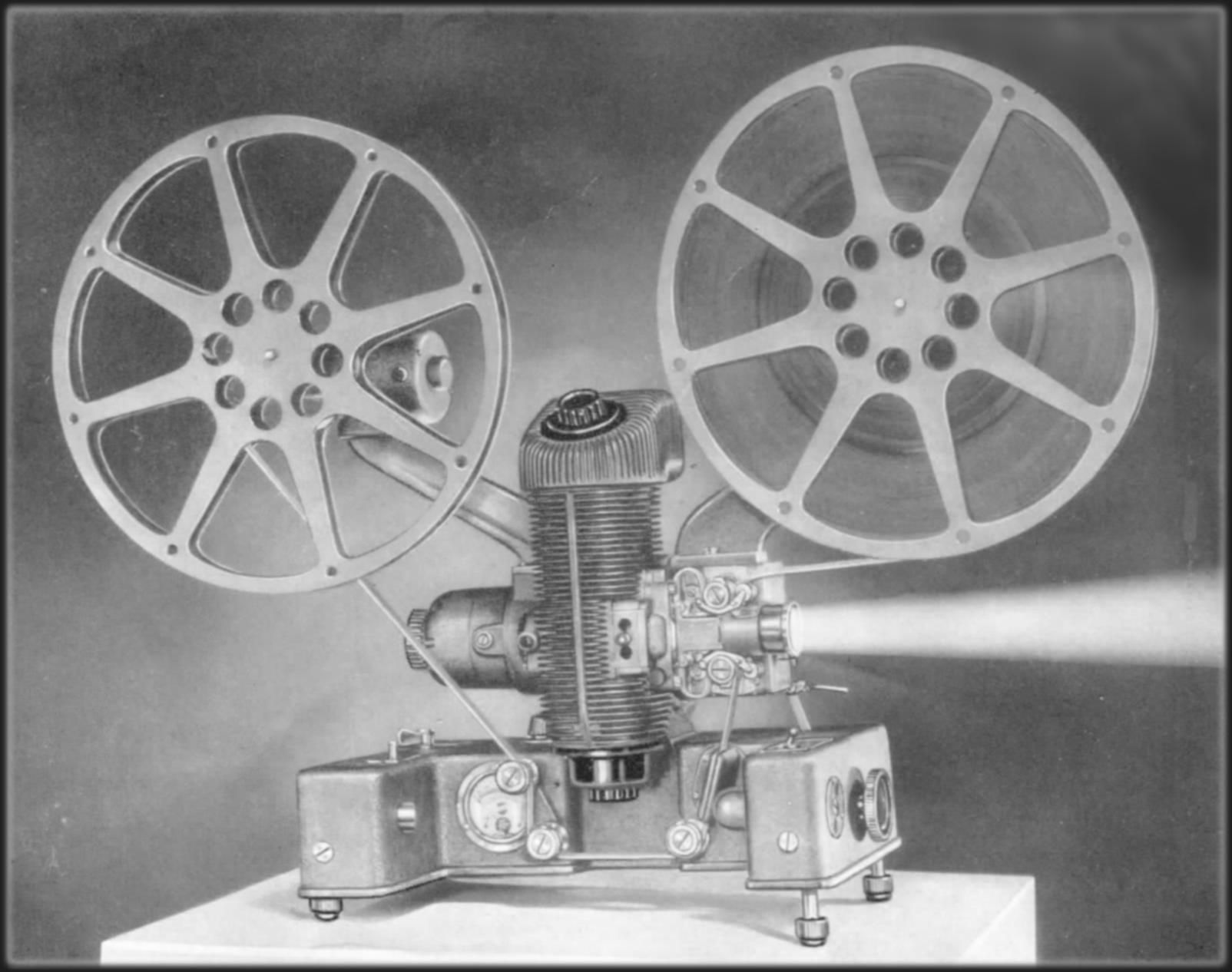

B&H Auditorium Silent
130
Filmosound Auditorium Separate projector and amplifier, changeover control on amp. Rheostat for lamp brightness.
 Projector and amplifier remove from separate wooden cases.

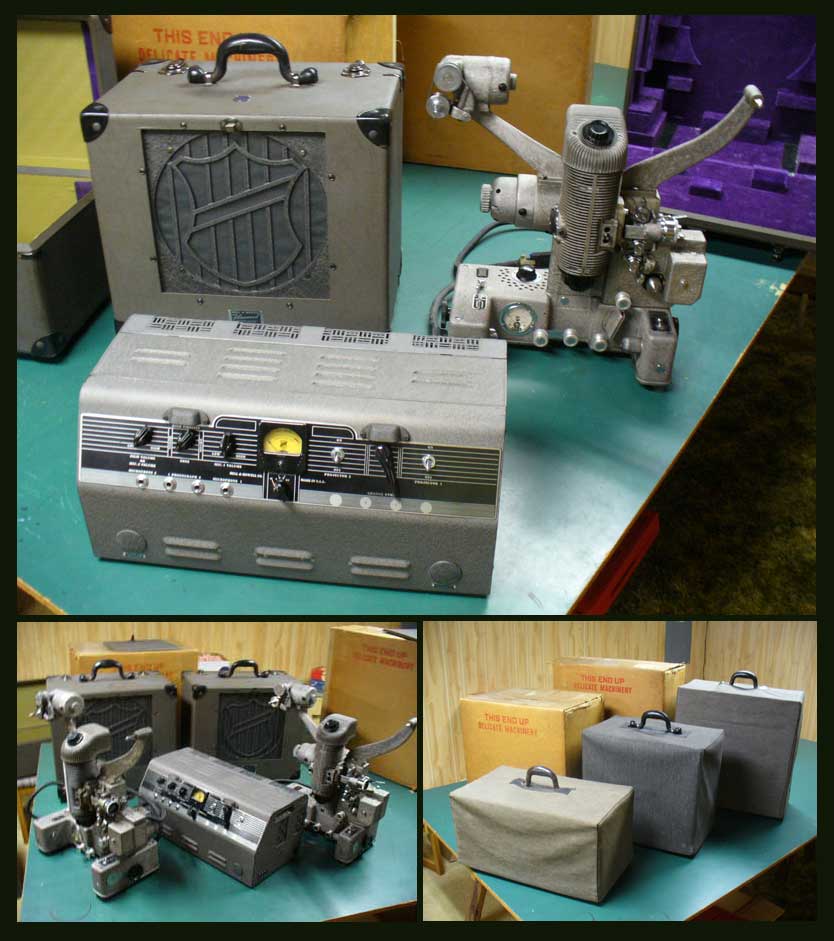

 V 1935-1942 DAG, DEJ, DHW BRD B&H 130
136 A-E Jan? ? ? V ? ? ?

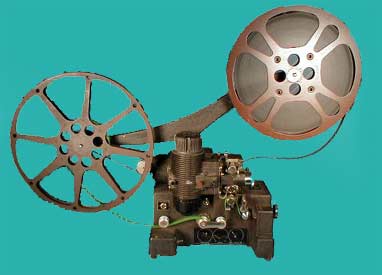

138
Filmosound Commercial Single case, lifts out, reel arms attach to top of projector mechanism. Sound speed only. Proj. lifts out of Black wooden case. V 1936-1940 DAG, DEJ BRD Photo of B&H 138
138
Filmosound Academy Blimp case (Projector operates inside of wooden case, sound / silent, 2 cases (Proj, Spkr) Black Wood? Operates inside of case V 1936-1940 DAG, DEJ BRD
138
Filmosound Utility Blimp case, same as Academy except has Still and Reverse. Black Wood? Operates inside of case V 1936-1940 DAG, DEJ BRD
138 A Filmosound

V 1936-1937 DAG BRD
138B B-Z Filmosound Operates inside of wooden case, similar to later 179, but 1 piece door. Black Wood? Operates inside of case V 1936-1940 DEJ BRD

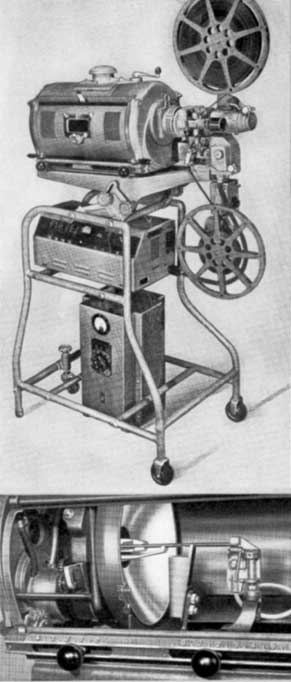

140 A-U Filmo Arc Similar to 100 series except with carbon arc lamp, rectifier, and separate amplifier. 3 wooden cases. Lamphouse & rectifier made by Strong Intl. V 1937-1955 Carbon Arc National “Pearlex” carbons BRD

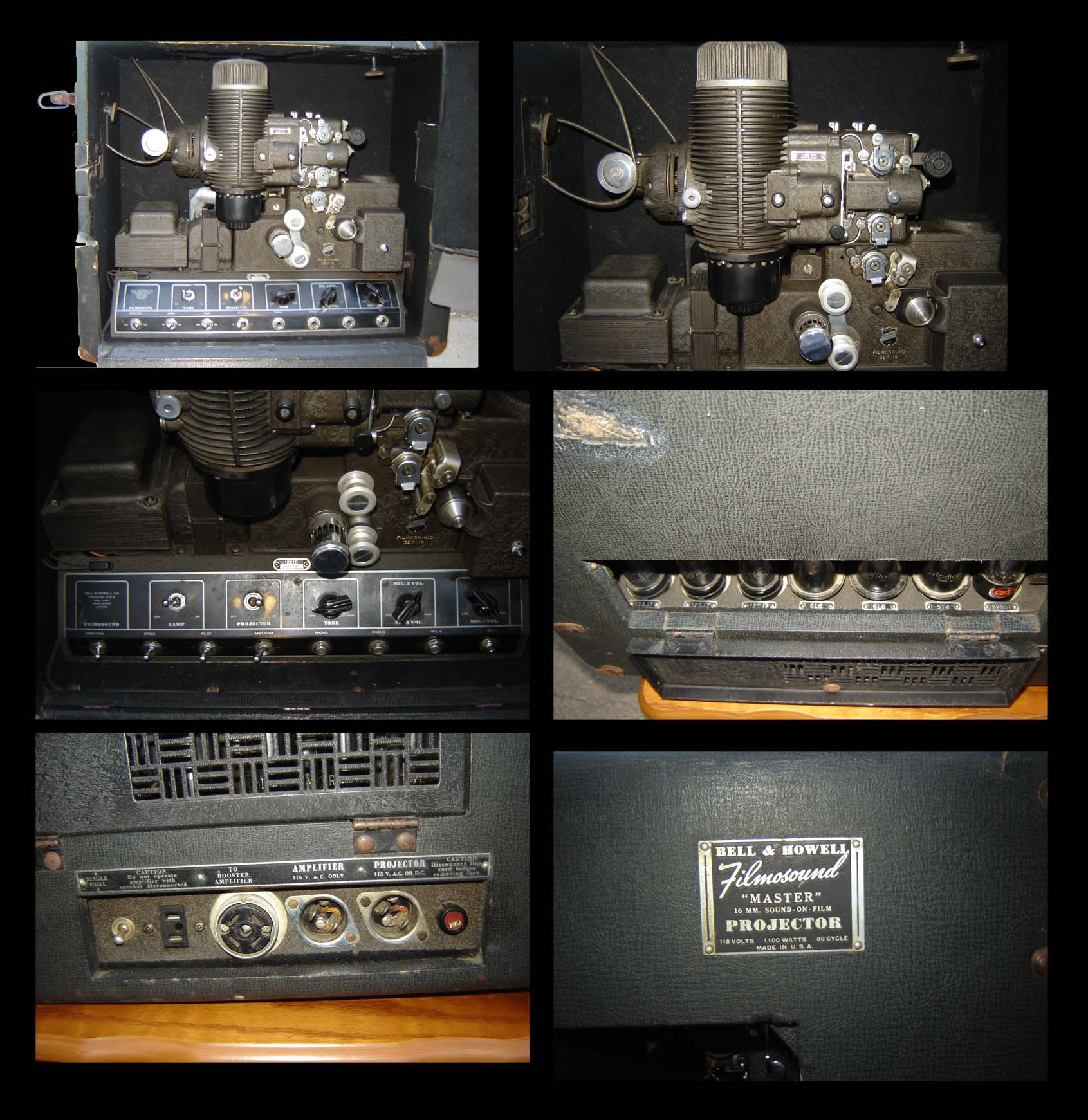

142 A Filmosound Manual thread. Huge amplifier built into projector base with sloping control panel. Has separate speaker case. Black wood. Operates inside of case. V 1939-1941 DEJ BRD Picture of B&H 142
148 A Jan? ? ? V ? ? ?

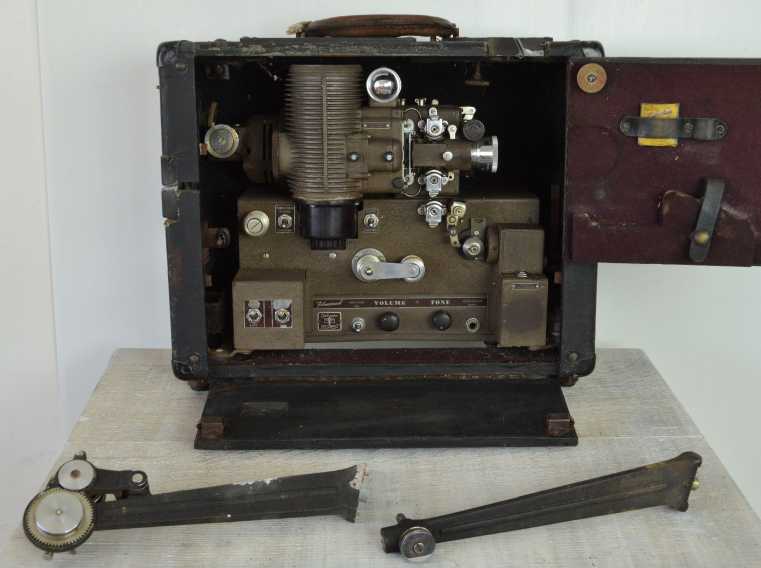

156 A-V Filmosound Manual threading Wood with black leather-like covering.  Operates inside of case V 1942-1945 DEJ, DFK, DFY BRD Photo of B&H 156
173
Filmo Diplomat Silent
Removes from case S 1940s - 1950s
 DAG, DEJ, DFY

173 B, BA, BAY Filmo Diplomat Silent
Removes from case S
DEJ, DFY

173 Time & Motion Study
 Filmo Diplomat Silent Similar to standard 173, except with calibrated speed control dial, crank for manual advance and frame counter.
 Removes from large brown wooden case S 1950s?
 DEJ, DFY

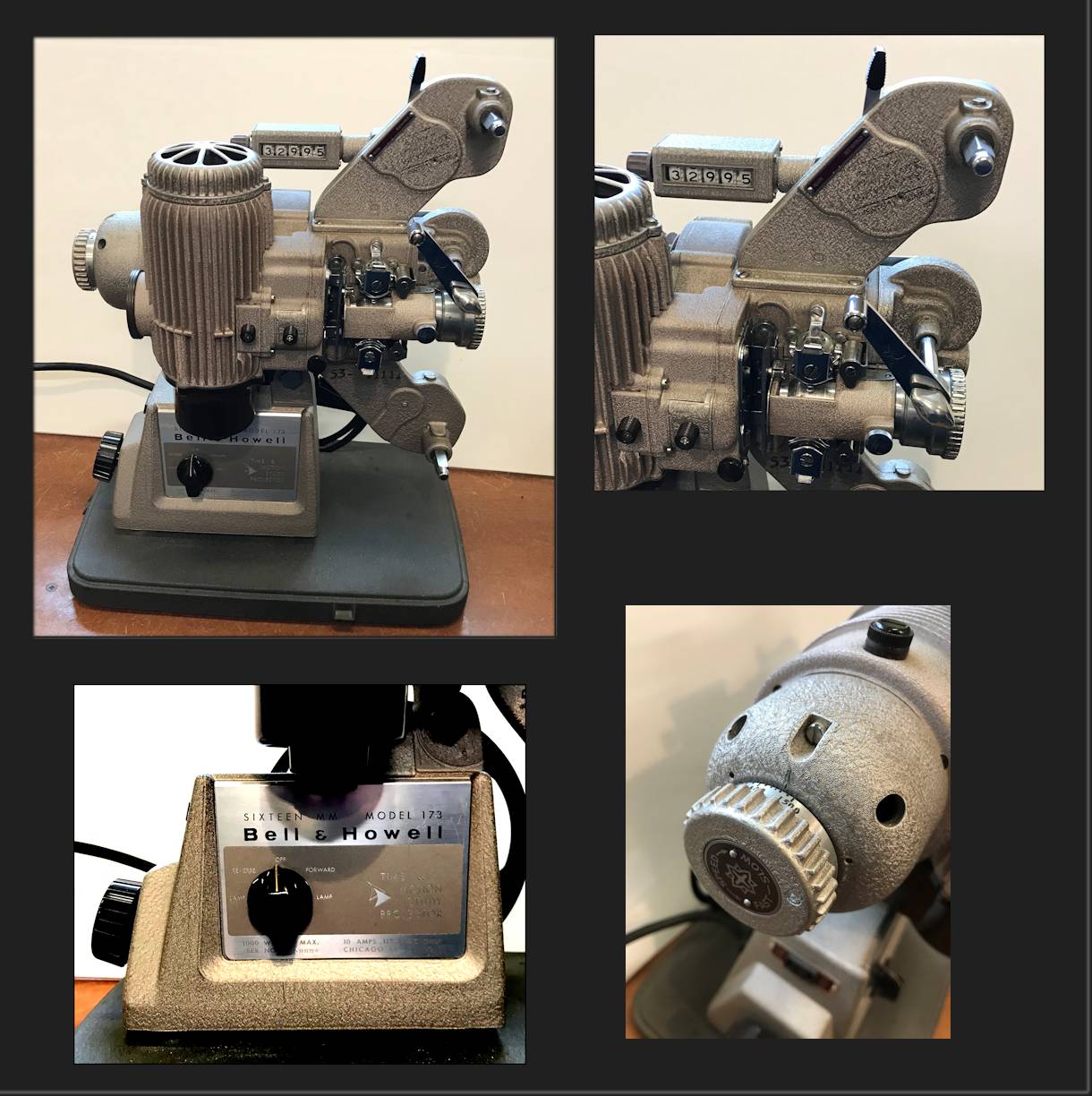

B&H 173 Time and Motion Study

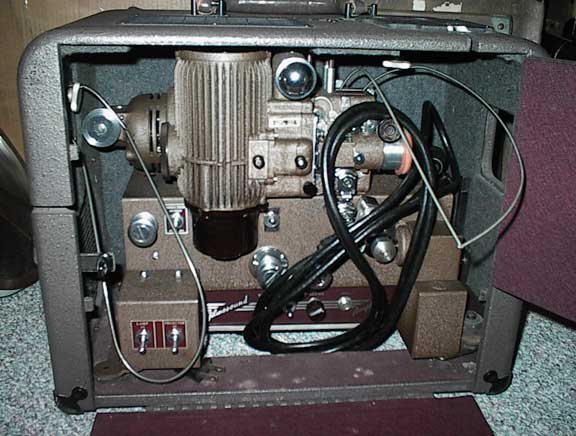

179
Filmosound Popular optical sound model, many different amplifier designs. Separate speaker box. Brown Wood. Operates inside of case, matching external speaker V 1945-1949 DAG, DEJ, DFK, DFY BRD
179 J Filmosound Auditorium With powered external speaker Brown Wood. V Ca. 1949 DAG, DEJ, DFK, DFY BRD
179 H Filmosound New Academy Standard external speaker Brown Wood. V Ca. 1949 DAG, DEJ, DFK, DFY BRD
179 L Filmosound Compact Speaker in rear door of projector. Brown Wood. V Ca. 1949 DAG, DEJ, DFK, DFY BRD

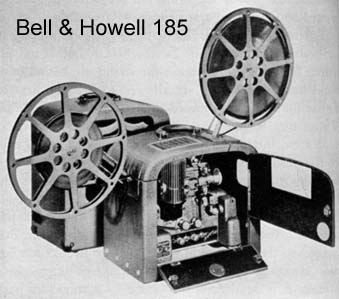

185
Filmosound Replacement for 179, many design changes to mechanism. Operates inside case Brown Wood, more rounded than 179 V 1949-1951 DAG, DEJ, DFK, DFY BRD, BRS
195
Filmosound ?
V
DAG, DEJ, DFK, DFY

199 A


V 1945

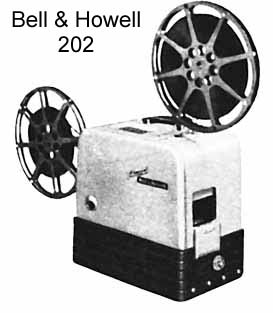

202
Filmosound Magnetic record & play. First magnetic model. Gray Wood V 1952-1955 DAG, DEJ, DFK, DFY BRD, BRS
273
Filmo Statesman Silent Tan Plastic lift-off S Mid 1950s DAG, DEJ

273 A Filmo Statesman Silent
S
DEJ

285
Filmosound Manual threading. Operates inside case. Gray Wood with dark blue lower door. V 1952-1955 DAG, DEJ, DFK, DFY BAK, BRS
285 B, B1 Filmosound With external speaker Gray Wood V Ca 1955 DAG, DEJ, DFK, DFY BAK, BRS
285 B2 Filmosound With powered external speaker Gray Wood V Ca 1955 DAG, DEJ, DFK, DFY BAK, BRS
285 C Filmosound Standard Gray Wood V 1954-1955 DAG, DEJ, DFK, DFY BAK, BRS
302
Filmosound Magnetic record & play. 8302 is similar. Gray Wood with metal door V 1955-1965 DAG, DEJ, DFK, DFY BRS, BAK
302 D, E Filmosound Magnetic record & play. 8302 is similar. Gray Wood with metal door V 1955-1958 DAG, DEJ, DFK, DFY BRS, BAK
302 L Filmosound 16-mm Filmosound magnetic and optical sound projector, 120-volt, 50-60 cycle, oval case-mounted speaker, sapphire shuttle and film guide, gray wrinkle finish. Gray Wood with metal door V 1961-1963 DAG, DEJ, DFK, DFY BRS, BAK
302 M Filmosound Same as Design 302L, except gray smooth finish and loopsetter (item 4-31) added. Gray Wood with metal door V 1963-1965 DAG, DEJ, DFK, DFY BRS, BAK
384 A Filmosound Specialist Similar to 385, except without still picture and reverse projection.
Gray Wood with metal door 		V 1958-1961 DAG, DEJ, DFK, DFY BRS,BAK

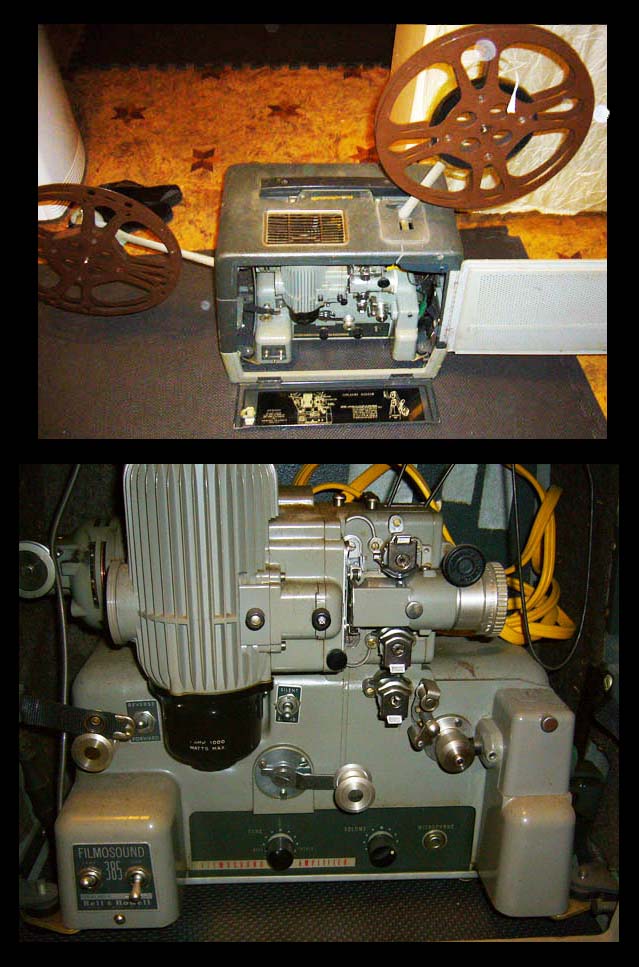

385
Filmosound Specialist Popular optical sound model. Gray Wood with metal door V 1955-1961 DAG, DEJ, DFK, DFY BRS,BAK Picture of B&H 385

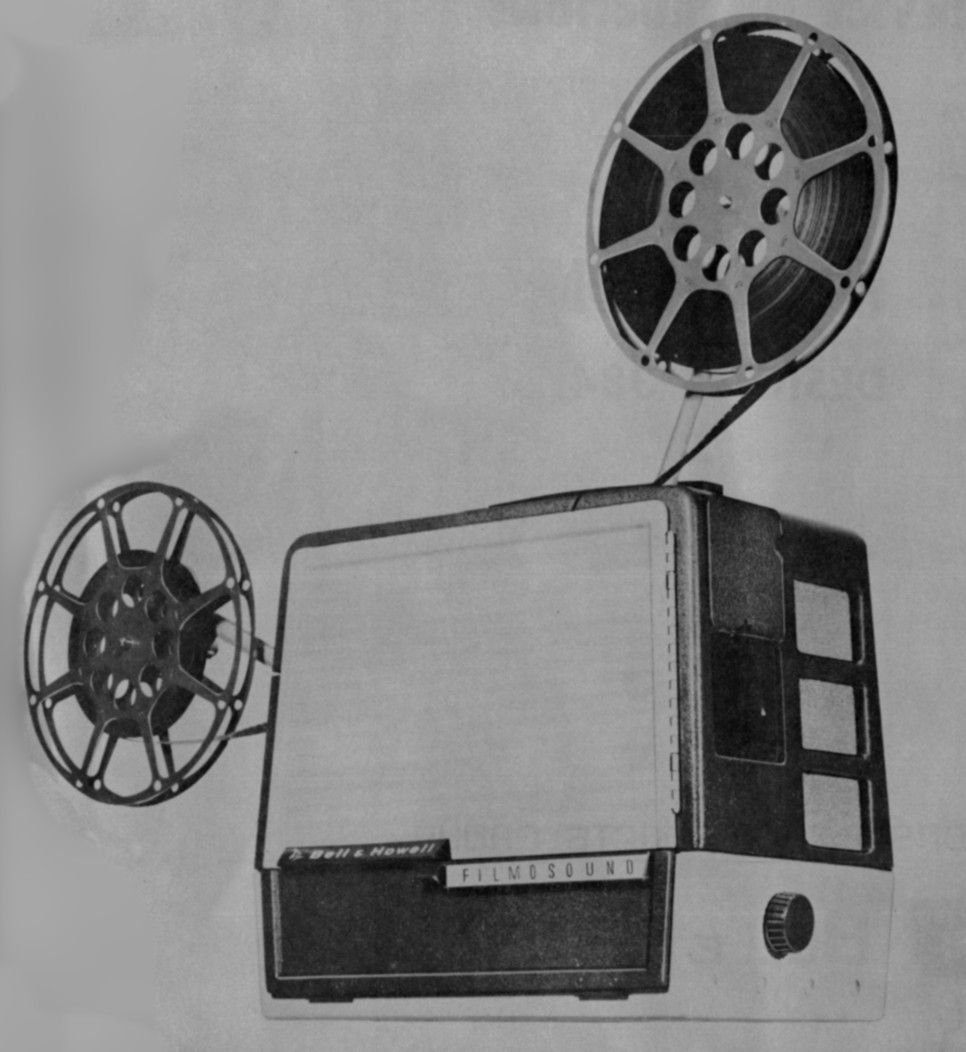

385 L
 Filmosound Specialist Popular optical sound model. Speaker in front of case.
 Gray Wood with metal door V 1955-1961 DAG, DEJ, DFK, DFY BRS,BAK B&H 385L
398 A Filmosound Specialist Similar to 385 & 399
 Gray Wood with metal door V 1958-1961 DAG, DEJ, DFK, DFY BAK, BRS
399
Filmosound Specialist Similar to 385 except for sapphire bearings. Details
 Gray Wood with metal door V 1958-1961 DAG, DEJ, DFK, DFY BRS,BAK
535
Filmosound Specialist Manual Threading, economy model –no loop restorer Brown Fiberglass V 1961-1969 CTS, CTT/DAX, CWA, CYS/DBH BAK
535 T, Y Filmosound Specialist Manual Threading, economy model—no loop restorer Brown Fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
537
Filmosound Specialist

V
CTS, CTT/DAX, CWA, CYS/DBH BAK
540
Filmosound Specialist Manual Threading Turquoise fiberglass V 1961-1969 CTS, CTT/DAX, CWA, CYS/DBH BAK
540 T Filmosound Specialist Manual threading, transistor amplifier Turquoise fiberglass T 1969-1971


541
Filmosound Specialist
Turquoise fiberglass V
CTT/DAX, CWA, CYS/DBH BAK
541 T Filmosound Specialist
Turquoise fiberglass T
CTT/DAX, CWA, CYS/DBH BAK
542
Filmosound Specialist
Turquoise fiberglass V 1961-1964 CTS, CTT/DAX, CWA, CYS/DBH BAK
544
Filmosound Specialist

V
CTT/DAX, CWA, CYS/DBH BAK
545
Filmosound Specialist Basic Autoload model Turquoise Fiberglass V 1964-1969 CTT/DAX, CWA, CYS/DBH BAK
545 EXT Filmosound Specialist Export version, 50 Hertz, Autoload
 Turquoise fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
545 T Filmosound Specialist Transistor amplifier, Autoload
 Turquoise fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
546
Filmosound Specialist

V
CTT/DAX, CWA, CYS/DBH BAK
550
Filmosound Specialist Autoload Turquoise fiberglass V 1963-1969 CTS, CTT/DAX, CWA, CYS/DBH BAK
550 T Filmosound Specialist Autoload with transistor amplifier Turquoise fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
551
Filmosound Specialist

V
CTT/DAX, CWA, CYS/DBH BAK
552
Filmosound Specialist Full featured automatic threading, has still picture & sound/silent speeds Turquoise fiberglass V 1962-1969 6S6DC/CL130V, CTS, CTT/DAX, CWA, CYS/DBH BAK
552 EXT Filmosound Specialist Export version, 50 Hertz, Autoload
 Turquoise fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
552 T Filmosound Specialist Autoload Turquoise fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
553
Filmosound Specialist

V
CTT/DAX, CWA, CYS/DBH BAK
554
Filmosound Specialist

V
CTT/DAX, CWA, CYS/DBH BAK
555
Filmosound Specialist

V
CTT/DAX, CWA, CYS/DBH BAK
556
Filmosound Specialist Canadian version of 552. All markings in French & English Turquoise fiberglass V 1965-1969 CTT/DAX, CWA, CYS/DBH BAK
556 T Filmosound Specialist Canadian version of 552. All markings in French & English Turquoise fiberglass T 1969-1971 CTT/DAX, CWA, CYS/DBH BAK
560 A Arc lamp Manual threading model of 566. Limited production Turquoise fiberglass V 1966 - EZM, MARC-300/16

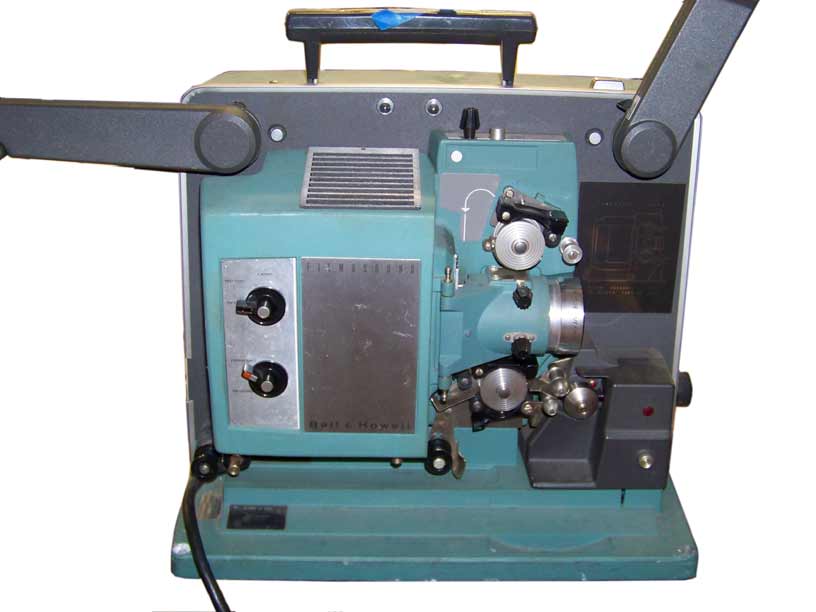

561
Filmosound Specialist Portable filmchain model for telecine. Manual thread, optical sound only Turquoise fiberglass V Mid 1960s – mid 1970s CAL/CXP, CTT/DAX, CWA, CZA/CZB BAK Photo of B&H 561
561 A Autoload Filmchain Portable filmchain model for telecine. Optical sound. Turquoise fiberglass V Mid 1960s – mid 1970s CAL/CXP, CWA, CZA/CZB BAK
562
Filmosound Specialist Pedestal mount filmchain model with optical/magnetic sound. Manual threading. Turquoise fiberglass V Mid 1960s – mid 1970s CAL/CXP, CTT/DAX, CWA, CZA/CZB BAK
562 A Autoload Filmchain Pedestal mount filmchain model with optical/magnetic sound Turquoise fiberglass V Mid 1960s – mid 1970s CAL/CXP, CWA, CZA/CZB BAK

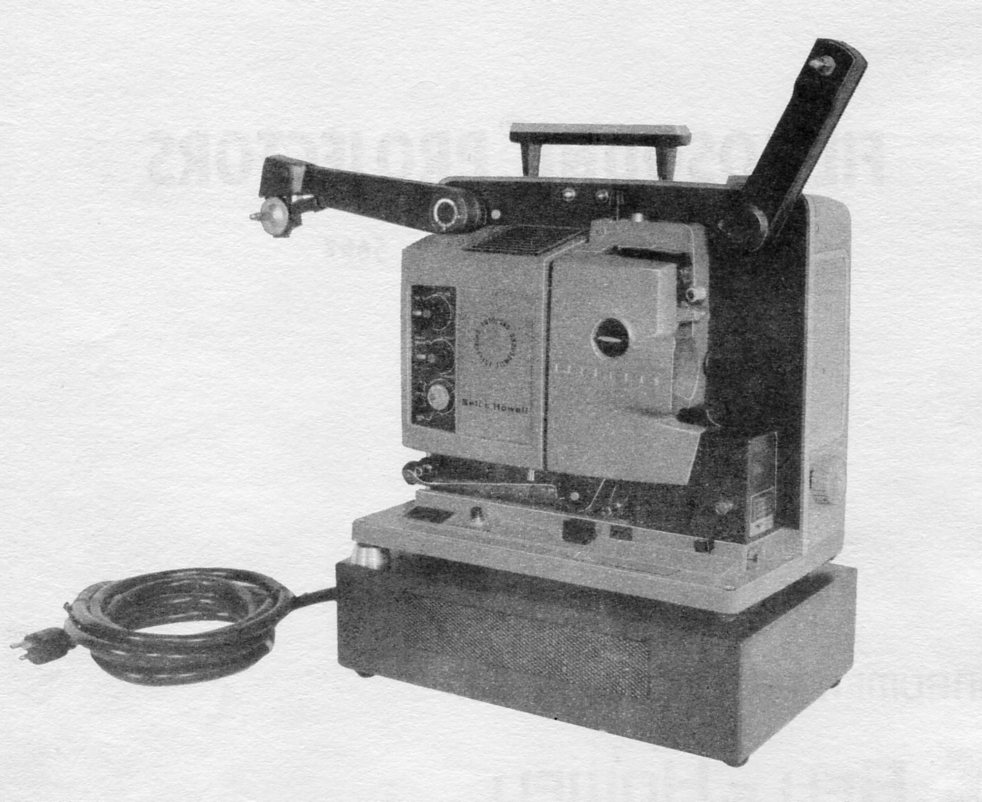

566
Autoload Specialist High intensity arc lamp with changeover. 24fps only, 2 blade shutter. Turquoise fiberglass V 1964-1969 EZM, MARC-300/16 BAK B&H 566
566 A Autoload Specialist High intensity 60Hz Turquoise fiberglass V 1966- EZM, MARC-300/16 BAK
566 EXT Autoload Specialist High intensity, export version Turquoise fiberglass T 1969-1976 EZM, MARC-300/16 BAK
566 T Autoload Specialist High intensity arc lamp with changeover Turquoise fiberglass T 1969-1976 EZT, MARC350/16T BAK
566 X Autoload Specialist High intensity 50 Hz Export model Turquoise fiberglass V 1964-1969 EZM, MARC-300/16 BAK
567
Autoload Specialist High intensity arc lamp with changeover. 24fps only, 2 blade shutter. Turquoise fiberglass T 1971-1976 EZT, MARC350/16T BAK
567 A Autoload High intensity Turquoise fiberglass T
EZT, MARC350/16T BAK

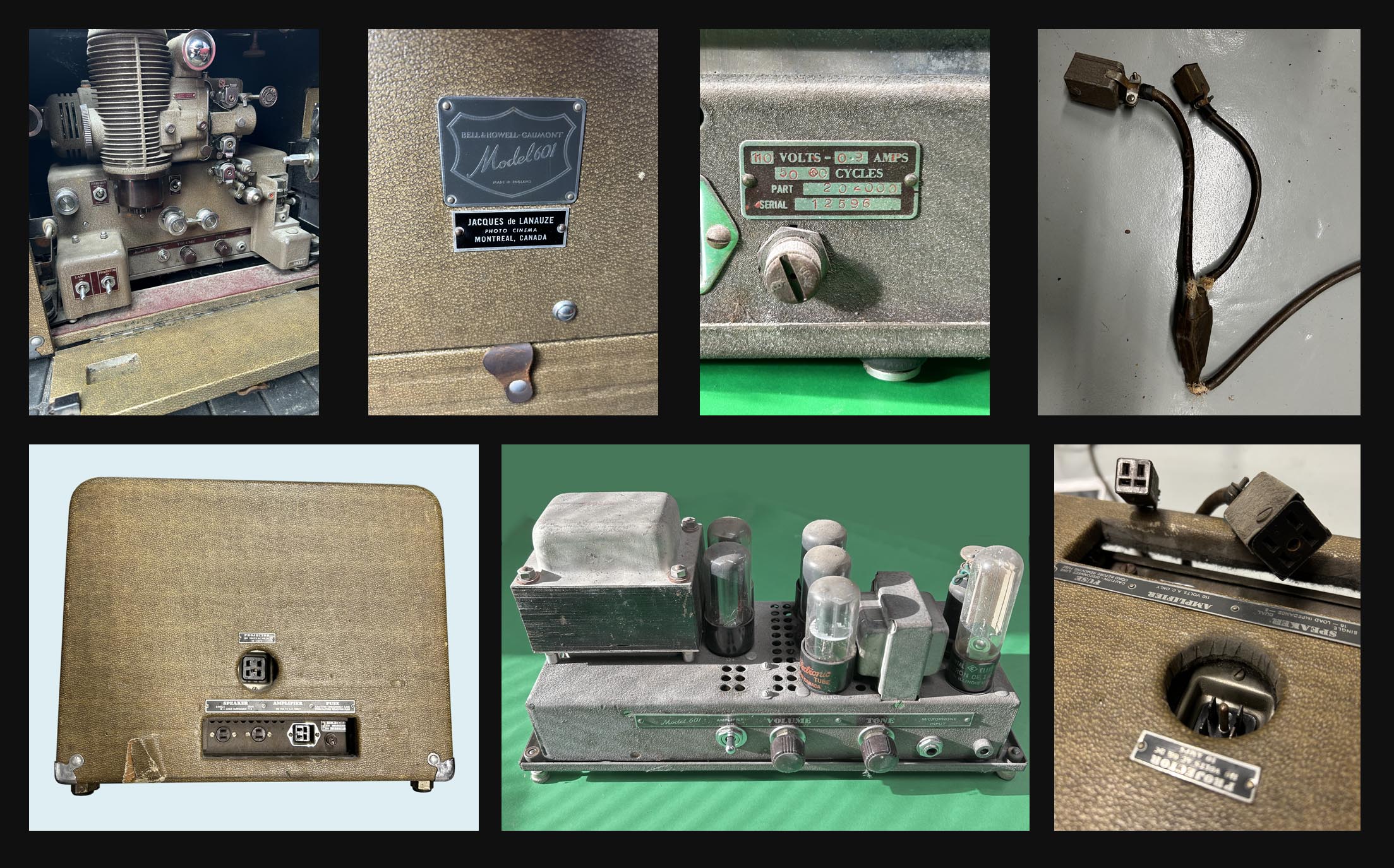

601
B&H Gaumont Sound, similar to the 179. Has swing-out speaker in the case.  110V, supplied with transformer for 220V operation.
 Brown wood
 V
 1948-1950

Picture of B & H 601 Projector
602
B&H Gaumont
 Silent proj., similar to the 173, made in the U.K.  110 V

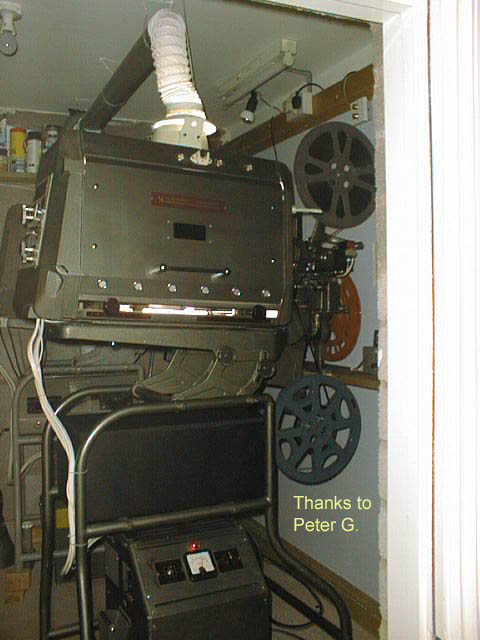

609
Arc Projector Carbon arc, manual thread. Made for the UK. Replaces the Filmoarc 140 and has more powerful lamphouse Gray metal V 1956-1965 Carbon Arc, G.B. Kalee Universal Arc Lamp BRD


613

Silent proj., similar to the 173, made in the U.K. Folding arms for 800 ft spool capacity.  More info
S 1950s ?  Possibly DEJ
 --
614 A JAN
Gray metal? V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 AB JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 AC JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 AD JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 ADL JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 ADRM JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 ADS JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 AE JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 AES JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX
614 BB JAN

V 1955-1962 DDB/DDW, DFD, DFT, DHT BRX

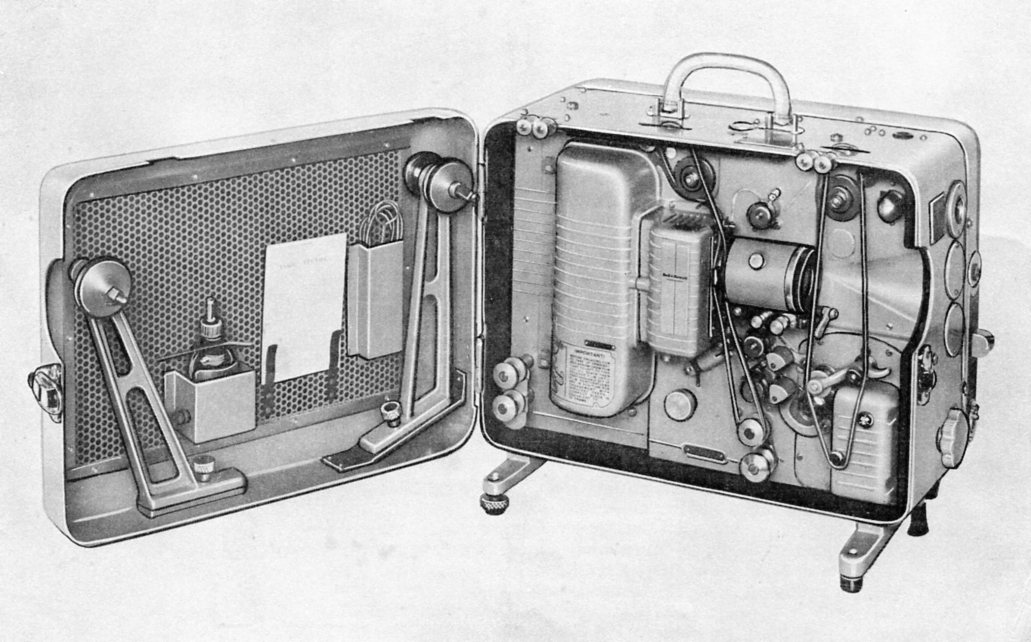

614 CB JAN 16 and 24 FPS
V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX B&H 614CB
614 CBM
 JAN 16 and 24 FPS
V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX
614 CBRM
 JAN Synchronous motor, 24 FPS only
V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX
614 CD
 JAN Germanium Photocell, 24 FPS only
V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX
614 CBTV JAN

V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX
614 CBVS JAN

V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX
614 CBX JAN

V 1962-1970 DDB/DDW, DFD, DFT, DHT BRX
614 CDM JAN 24fps only, universal motor, lifetime lubrication, opt/magnetic sound playback
V 1963-1965 DDB/DDW, DFD, DFT, DHT BRX
614 CDTV JAN

V 1963-1965 DDB/DDW, DFD, DFT, DHT BRX
614 CDVM JAN

V 1963-1965 DDB/DDW, DFD, DFT, DHT BSL
614 CDVS JAN

V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 CDVX JAN

V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 DB JAN

V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 ETVF JAN

V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 ETVS JAN Filmchain projector for portable telecine use.
V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 EVMF JAN Filmchain projector for portable telecine use. 117V 50 Hz 48 cycle shutter. 25fps only, sync motor, changeover, opt/mag sound playback
V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 EVMR JAN Filmchain projector for pedestal mount telecine use. Magnetic sound capability? 60 Hz 72 cycle shutter. 24fps only, sync motor, changeover, opt/mag sound playback.
V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
614 EVMS JAN Filmchain projector for pedestal mount telecine use. Magnetic sound capability? 60 Hz 120 cycle shutter. 24fps only, sync motor, changeover, opt/mag sound playback
V 1965-1975 DDB/DDW, DFD, DFT, DHT BRX
616 D-5


V
CZX/DAB, DDB/DDW

621

Updated version of the 601, 110V used with mains adaptor.
 Grey wood, curved top similar to 185
 V
 Introduced 1951

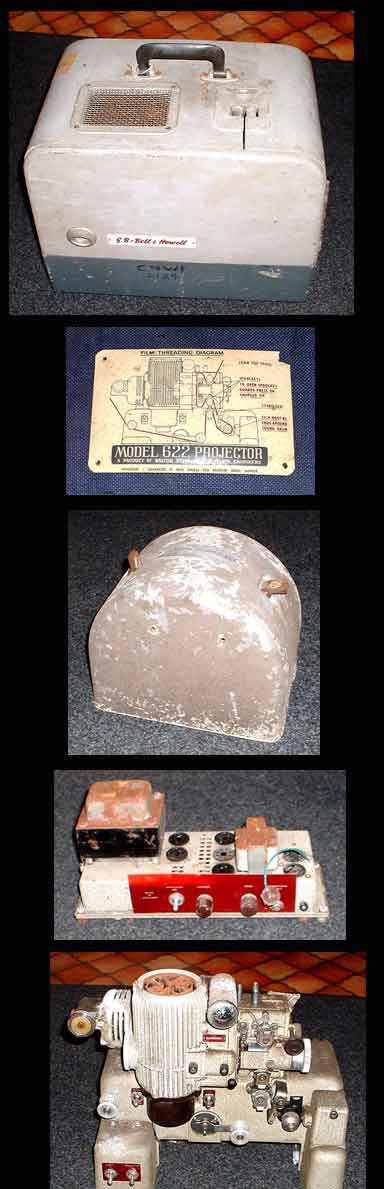

622

110V model with it's own heavy mains adapter for 240V.
It is sound/silent, operates in its box with hinged flap and has a mains amp built in with 2x6V6 output valves. Similar to 621 but with sapphire inserts.
V
 Introduced 1954


623     Similar to 622 with built-in detachable 6 in. speaker.     V
626

Similar to the 621, 240V operation without external transformer.
V
 Introduced 1953

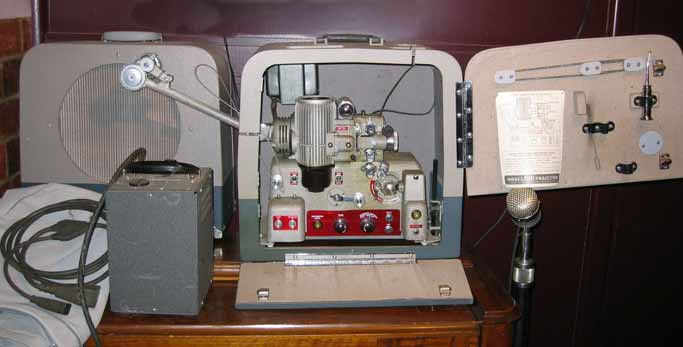

630
Optical / magnetic (R-P)
 G.B - Bell & Howell magnetic - optical 16 mm sound projector
110 Volt with transformer for 240 volt supply
110 Volt 750 watt lamp.   Similar to the U.S. model 202.
 Light grey / dark grey wood
 V
 Introduced 1953


631

Similar to 630 except without magnetic sound
V
 Introduced 1957


631
 SP
Similar to 630 except with magnetic sound playback only
V
 Introduced 1958


635
Manual Similar to 535, except 230V
V Mid 1960s A1/235 BAK
636
Manual Similar to 535, except 230V Blue-grey / grey fibreglass
 V Mid 1960s 240V 750W.A1/53

640     Similar to 630 with full/half track selectable magnetic sound.  Last UK wood case model. Light grey / dark grey wood
 V Introduced 1958
641
Manual 641 optical replay basic model 8watt amplifier no separate tone controls
641/642/643/644 models had the TTH f1.4 2" lens as standard and Rank's double acting variable aperture back plate.  Similar to 535, except 240V
 Grey fiberglass V
 Introduced 1961 240 V 1000 W A1/242

642
Manual 642 optical replay professional model 15 watt amplifier separate treble/ base controls. Grey fiberglass V
 Introduced 1961 240 V 1000 W A1/242

643
Manual 643 as 642 plus mag replay Grey fiberglass V
 Introduced 1961 240 V 1000 W A1/242 G/29, BAK, BRS
644
Manual 644 as 643 plus mag record Grey fiberglass V
 Introduced 1961 240 V 1000 W A1/242 BAK, G/29
643 8D Manual Same as 658Q except manual thread. Has magnetic sound playback. TQ1?.  Models sourced from Japan without variable aperture back plate.
 Grey fiberglass V 1966 ?? G/29, BAK, BRS
644 8D
 Manual Similar to 658 except with Magnetic record / play. TQ1? Models sourced from Japan without variable aperture back plate.
 Grey fiberglass V Mid 1960s A1/235 BAK, G/29
652
Autoload 652 as 641 but with autothreading

1965
 240 V 1000 W A1/242

652 Q Autoload TQ1 Series, Similar to 545, except 230V.  Claw cam profile altered to give slower pull down, to avoid 'clicking' in the gate / increased shutter cover up required.  Made in  Japan.
Grey fiberglass T 1969 A1/235 (24 volt) BAK, G/29
655
Autoload 655 as 642 but with autothreading

1965
 240 V 1000 W A1/242

655 Q Autoload TQ1 Series, Similar to 552EX, except 230V.  Made in  Japan. Grey fiberglass T 1969 A1/235 (24 volt) BAK, G/29
658
Autoload 658 as 642 but with autothreading

1965
 240 V 1000 W A1/242

658 Q Autoload TQ1 Series, Similar to 552EX, except 230V and mag sound.  Made in  Japan. Grey fiberglass T 1969 A1/235 (24 volt) BAK, G/29
666
Manual
 UK TQ1 240 volt version of 566 arc lamp projector. Opt/Mag playback
 Grey fiberglass V 1969 Marc-300/16 BAK, G/29
1535
Filmosound Specialist Same as 1545 except Manual Threading. No loop restorer. Charcoal metal T 1971-1975 EMM/EKS BAK
1540
Filmosound Specialist Same as 1545 except Manual Threading Turquoise metal T 1971-1975 EMM/EKS BAK
1541
Filmosound Specialist Same as 1545 except Manual Threading Turquoise metal T 1971-1975 EMM/EKS BAK
1545
Filmosound Specialist Basic autoload model, no still picture or Directamotion Turquoise metal T 1971-1975 EMM/EKS BAK
1550
Autoload
Turquoise metal T 1971-1975 EMM/EKS BAK
1550 L Filmosound Specialist Lightweight autoload model, less efficient line voltage lamp, no stop motion. Turquoise metal T 1971-1975 BHB BAK
1552
Filmosound Specialist Full-Featured autoload model with still image & Directamotion, sound/silent speed. Turquoise metal T 1971-1975 EMM/EKS BAK
1552 B Filmosound Specialist Dual brightness switch version of above Turquoise metal T 1971-1975 EMM/EKS BAK
1568 A Autoload High intensity arc lamp with changeover Black plastic T 1979-1985 EZG, Gemini-300 BAK
1568 B Autoload High intensity arc lamp with changeover & multimedia Black plastic T 1979 -1985 EZG, Gemini-300 BAK
1574
Filmosound Manual threading. Amplifier inside projector base. Grey & Black plastic T 1975-1976 EMM/EKS BAK

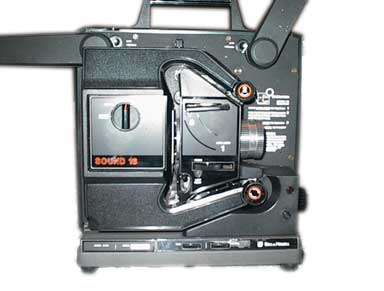

1575 A Slot Load Line voltage lamp to reduce weight of transformer. Turquoise or black plastic T 1978 BHB BAK
1575 C Slot Load Line voltage lamp to reduce weight of transformer. Turquoise or black plastic T 1986 BHB BAK
1579
Manual Manual Threading Turquoise plastic T 1976 EMM/EKS BAK
1580
Slot Load Basic model Turquoise plastic T 1979 EMM/EKS BAK
1585
Autoload Plastic case, dual brightness, sound/silent speed, no stop motion or Directamotion. Turquoise plastic T 1978 EMM/EKS BAK
1590
Autoload Metal lamphouse cover Turquoise plastic T 1978 BHB BAK
1590 A Filmosound Line voltage lamp Turquoise plastic T 1978 BHB BAK
1592
Autoload Similar to 1552 except for case Turquoise plastic T 1978 EMM/EKS BAK
1644
 TQII
 Manual
 Opt/Mag R/P
 Charcoal metal?
 T
 1973
 EMM/EKS?
 BAK
1652
 TQII Autoload
 Optical only
 Charcoal metal? T
 1973
 EMM/EKS? BAK
1653
 TQII Autoload
 Opt/Mag playback
 Charcoal metal? T
 1973
 EMM/EKS? BAK
1654 TQII Autoload Export 240 v 50Hz. Has optical and magnetic sound play, bass & treble controls. "Specialist"
 Charcoal metal T 1980 EMM/EKS BAK
1655 TQII Autoload Export 240 v 50Hz. Optical sound. Bass & treble controls.  "Specialist"
 Charcoal metal T 1980 EMM/EKS BAK
1658
 TQII Autoload
 240 v 50Hz. Has optical and magnetic sound play.  "Specialist" Charcoal metal? T
 1973
 EMM/EKS
 BAK
1680
Slot Load Export to UK & Australia Turquoise plastic T 1979 EMM/EKS BAK
1680 A-C JAN Export to UK & Australia Turquoise plastic T 1979 EMM/EKS BAK
1680 G JAN Export to UK & Australia Turquoise plastic T 1979 ELC BAK
1680 Q Slot Load Export to UK & Australia Turquoise plastic T 1979 ELC BAK
1680 QSA Slot Load Export to UK & Australia Turquoise plastic T 1979 ELC BAK

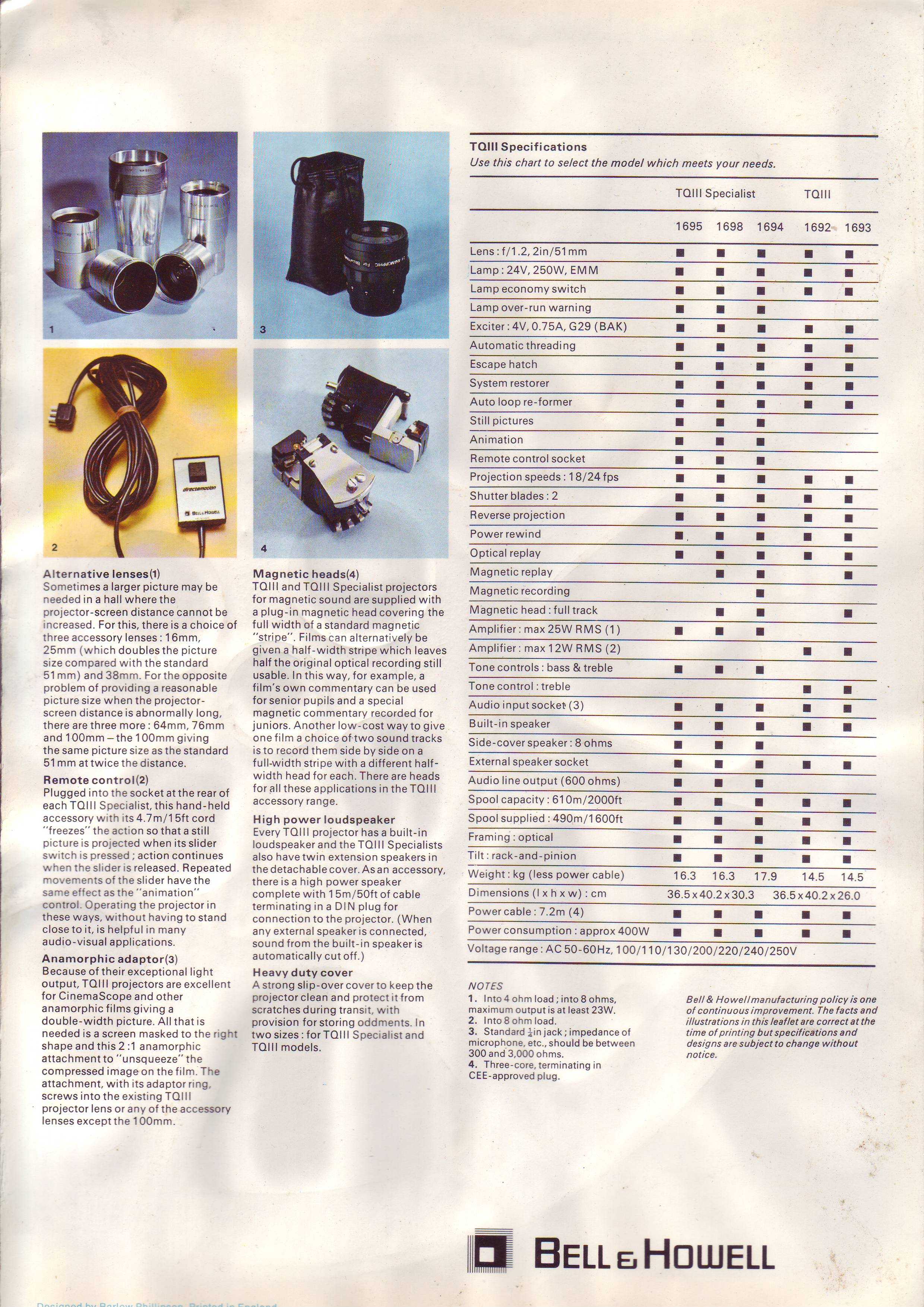

1692 A TQIII

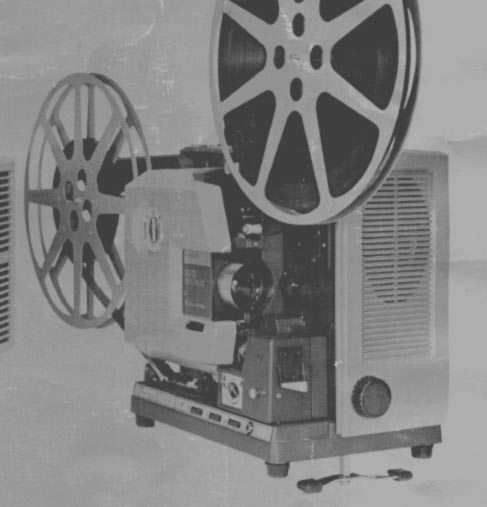

 Autoload Export, optical sound. 240 volt Turquoise plastic T 1980 EMM/EKS BAK Picture of B&H TQIII
1692 B TQIII Autoload Export, optical sound Turquoise plastic T 1980 ELC BAK
1693 A TQIII Autoload Export, Magnetic sound play Turquoise plastic T 1980 EMM/EKS BAK
1693 B TQIII Autoload Export, magnetic sound play Turquoise plastic T 1980 ELC BAK

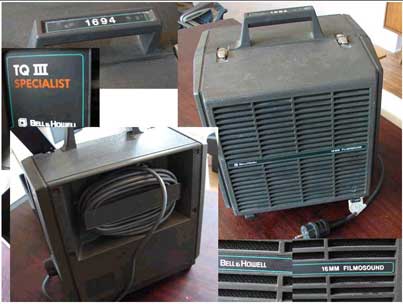

1694 A TQIII Autoload Specialist
 TQIII  Export, magnetic sound R/P, Speaker in  cover.
Turquoise or dark grey plastic T 1980 EMM/EKS BAK
1695 A TQIII Autoload Export, optical sound Turquoise plastic T 1980 EMM/EKS BAK
1695 B TQIII Autoload Export, optical sound Turquoise plastic T 1980 ELC BAK
1695
 TQIII Autoload
 TQ III
 Dark Grey or Brown plastic
 T
 1980+
 ELC A1/259 24V 250

1698 A TQIII Autoload Export, Magnetic sound play Turquoise plastic T 1980 EMM/EKS BAK
1698 B TQIII Autoload Export, magnetic sound play Turquoise plastic T 1980 ELC BAK
2575 ? Slot Load Line voltage lamp. Economy model. Dark Grey plastic T 1985 EYK BAK
2580 A Slot Load Basic slotload model Dark Grey plastic T 1985 ELC BAK
2580 AX Slot Load Export version Dark Grey plastic T 1985 ELC BAK
2582 A Slot Load Deluxe slotload model Dark Grey plastic T 1985 ELC BAK
2582 AX Slot Load Export version Dark Grey plastic T 1985 ELC BAK
2585 A Autoload Similar to 2592 except without still image and Directamotion. Sound speed only. Turquoise or Dark Grey plastic T 1986 ELC BAK
2585 AML Autoload Military version. Has additional fuses. Dark Grey plastic T 1986 ELC BAK
2585 AX Autoload Export Dark Grey plastic T 1986 ELC BAK
2585 AXU Autoload Export Dark Grey plastic T 1986 ELC BAK
2585 B Autoload Similar to 2592 except without still image and Directamotion. Sound speed only. Dark Grey plastic T 1986-1988 ELC BAK
2590 A Filmosound Similar to 2585 except with line voltage lamp, no brightness adjust. Dark Grey plastic T 1986-1988 BHB BAK

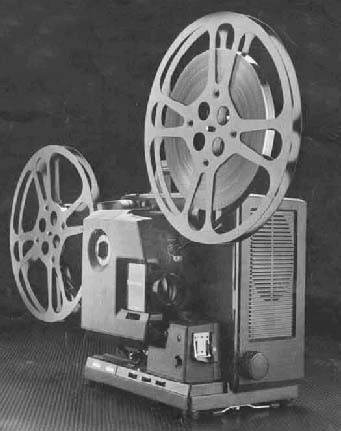

2592 A-B Autoload Full-Featured model with still image & Directamotion Dark Grey plastic T 1986-1988 ELC BAK
2592 C Autoload Last variation of the 2592.  Same as the B, except the speaker jack is below and to the left of the volume control.  Has tone control, no bass & treble. Dark Grey plastic T ca 1989 ELC BAK
2592 AX Autoload Export Dark Grey plastic T 1986-1988 ELC BAK
2598
 TQM
 Autoload Specialist
 Dark Grey plastic T
 1980's
 ELC?
B&H 2698
2685 TQ3 Autoload Export to the UK. 240 volt version of a 2585 Turquoise plastic T 1985 ELC BAK
2692 TQ3 Autoload Export to the UK. 240 volt version of a 2592 Turquoise plastic T 1985 ELC BAK
2698 TQ3 Autoload Export to the UK. 240 volt version of a 2592 with optical & magnetic sound playback. Turquoise plastic T 1985 ELC BAK
3575
Filmosound Slot Load Economy model. No reverse or still. Uses line voltage lamp. Made by Eiki. Same as Eiki SSL-0L Black metal case with plastic lid T 1987-2003 EYK, EWG BRK
3580
Filmosound Slot Load Made by Eiki, same as Eiki SSL-0. Standard slotload. Black metal case with plastic lid T 1987-2003 ELC BRK
3585
Filmosound Autoload Made by Eiki, same as Eiki SNT-0 (rotary switch). Basic Autoload model. Black metal case with plastic lid T 1987-2003 ELC BRK
3585 -1 Filmosound Autoload Made by Eiki. Same as Eiki SNT-1 with lift off cover speaker. Black metal case with plastic lid T 1987-2003 ELC BRK
3585 -2 Filmosound Autoload Made by Eiki. Same as Eiki SNT-2 with lift off cover speaker and magnetic sound playback Black metal case with plastic lid T 1987-2003 ELC BRK
3592
Filmosound Autoload Made by Eiki, same as Eiki ENT-0 (pushbutton switch). Full featured Autoload model. Black metal case with plastic lid T 1987-2003 ELC BRK
3592 -1 Filmosound Autoload Made by Eiki. Same as Eiki ENT-1 with lift off cover speaker Black metal case with plastic lid T 1987-2003 ELC BRK
3592 -2 Filmosound Autoload Made by Eiki. Same as Eiki ENT-2 with lift off cover speaker and magnetic sound playback Black metal case with plastic lid T 1987-2003 ELC BRK
3885
Filmosound Made by Eiki
T
ELC

8302
Filmosound Magnetic record & play. Similar to 302 except made in Japan Gray Wood with metal door V 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 T Filmosound 8302 with transistorized amplifier Gray Wood with metal door V 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 A Filmosound Same as Design 302M, except made in Japan. Most notable difference in amplifier and door-mounted speaker. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 AO Filmosound Same as Design 8302A, except with oil cup lubrication system parts (Parts List Fig. 5) added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 AP Filmosound Same as Design 8302A, except with 3-wire power cord (part no.32051) added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 APO Filmosound Same as Design 8302A, except with 3-wire power cord and oil cup lubrication system parts (Parts List Fig. 5) added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 AT Filmosound Same as Design 8302A, except tropicalized. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 ATO Filmosound Same as Design 8302AT, except with oil cup lubrication system parts (Parts List Fig. 5) added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 B Filmosound Same as Design 8302A, except 220-volt. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 BO Filmosound Same as Design 8302AO, except 220-volt. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 BP Filmosound Same as Design 8302AP, except 220-volt. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 BPO Filmosound Same as Design 8302APQ, except 220-volt. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS,BAK
8302 BT Filmosound Same as Design 8302AT , except 220-volt. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 BTO Filmosound Same as Design 8302ATO, except 220-volt. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 C Filmosound Same as Design 8302A, except with insulation specification for CSA added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 CO Filmosound Same as Design 8302AO, except with insulation specification for CSA added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 D Filmosound Same as Design 8302A, except without silent speed operation Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 DO Filmosound Same as Design 8302D, except with oil cup lubrication system parts added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 E Filmosound Same as Design 8302B, except without silent speed operation . Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 EO Filmosound Same as Design 8302E, except with oil cup lubrication system parts added. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 L Filmosound Same as Design 8302AO, except with UL approved parts and front speaker case assembly. Gray Wood with metal door V Early 1960s DAG, DEJ, DFK, DFY BRS, BAK
8302 T Filmosound 8302 with transistorized amplifier Gray Wood with metal door T 1960s DAG, DEJ, DFK, DFY BRS, BAK
8399
Filmosound Updated version of 399. Manual threading. Turquoise wood with metal door V 1964 DFY BRS, BAK
8399 T Filmosound Updated 399 with transistorized amplifier. Manual threading. Turquoise wood with metal door T 1965 DFY BRS, BAK
8636
Maritime Specialist
 Similar to 8399
 Gray Wood with metal door
ca. 1960


D-4
JAN Military limited production combining the 385, 614, and 500 series features. Manual threading. Very rare. Blue wrinkle metal case V 1960 DEC, DAS BRX
TQ1  Series
Filmosound Specialist  See individual models above.
 Similar to 500 series, except made in Japan for the UK market. Autoload. 240 v 50Hz. Some models have magnetic sound. Gray fiberglass case T Late 1960s A1/235  (24 volts) BAK
TQ2 (TQII) Series
Filmosound Specialist  See individual models above. Similar to 1552 series, except made in Japan for the UK market. Autoload. 240v 50Hz. Some models have magnetic sound. Metal case (magnesium), charcoal color T 1970s EMM/EKS BAK
TQ3 (TQIII) Series
Filmosound Specialist  See individual models above. Similar to 1592 series, except made in Japan for the UK market. Autoload. 240v 50Hz. Some models have magnetic sound. Turquoise or dark grey plastic case T 1980s EMM/EKS BAK TQIII Brochure Back Page


(Thanks to John Thornley and others for additional information on the UK Models)


Copyright 2005-2023, Paul Ivester.  For personal use only, may not be reproduced otherwise without permission.


Contact Me

Back to Paul's Projector page
